713-1108/037-9037/033-000 | WAGO

Socket header, 16 pole, pitch 3.5 mm, straight, black, 713-1108/037-9037/033-000

Order No.: 44P1925
EAN: 4050821177630
MPN:
713-1108/037-9037/033-000
Series: MCS MINI HD

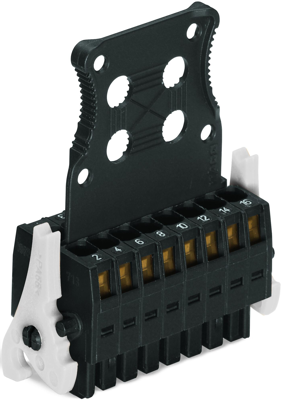

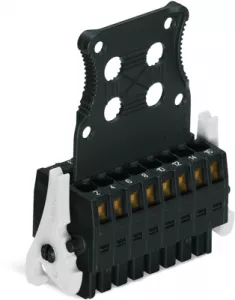

713-1108/037-9037/033-000 WAGO PCB Connection Systems Image 1
713-1108/037-9037/033-000 WAGO PCB Connection Systems Image 2
713-1108/037-9037/033-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
14.8155 € *
Available: 15 pcs.
Total Price:
14.82 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8155 €
10 pcs.
13.7802 €
50 pcs.
12.6735 €
100 pcs.
11.5311 €
*incl. VAT plus shipping costs
Subject to prior sale

1-Conductor female connector, 713-1108/037-9037/033-000, Wago

Female connector with disconnect aid and strain relief plate 2-row 8x2-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected can be coded by cutting off the coding lugs black

Technical specifications
Pin number 16 pole
Number of rows 2
Connection spring balancer connection
Rated current 10 A
Contact type socket
Orientation straight
Grid 3.5 mm
Version socket header
Additional parts equipped
Type of locking Yes
Colour black
contact surface tin-plated
Rated voltage 160 V
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
SVHC free No
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
RoHS conform Yes
Date of RoHS guidelines 3/31/15
