2734-215 | WAGO
1-wire female connector, 15 pole, pitch 3.81 mm, straight, orange, 2734-215
Unit Price (€ / pc.)
12.7687 € *
Standard delivery time from the manufacturer is: 4 Weeks

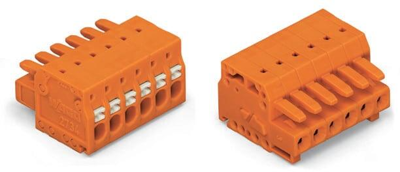

Female connector, 2734-215, WAGO
1-conductor female connector, push-button, Push-in cage clamp, 1.5 mm², Pin spacing 3.81 mm, 15-pole, 100% protected against mismating, 1.50 mm², orange.
Features
- Intuitive and tool-free lever actuation
- Universal connection for all conductor types
- Test slot 90° to conductor entry
Technical specifications
| Colour | orange | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 10 A | |
| Grid | 3.81 mm | |
| Pin number | 15 pole | |
| Version | socket header | |
| Orientation | straight | |
| Connection | push-in | |
| Contact type | socket | |
| Rated voltage | 160 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
