2734-208/031-000 | WAGO

Socket header, 8 pole, pitch 3.81 mm, angled, orange, 2734-208/031-000

Order No.: 44P0329
EAN: 4055143296113
MPN:
2734-208/031-000
Series: MCS MINI

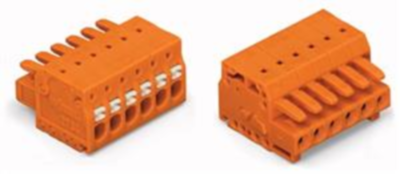

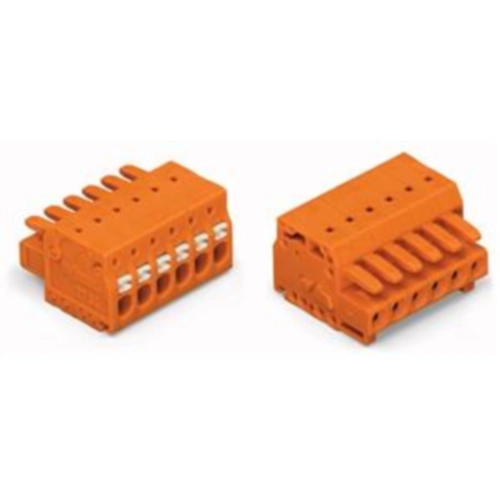

2734-208/031-000 WAGO PCB Connection Systems Image 1
2734-208/031-000 WAGO PCB Connection Systems Image 2
2734-208/031-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.7834 € *
Next delivery: 49 pcs. on 2025-07-30
Total Price:
5.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.7834 €

Female header, 2734-208/031-000, Wago

Female connector with actuating pushers and mounting flanges 8-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected codable orange

Technical specifications
Filter Property Value
Version socket header
Colour orange
Type of locking No
Pin number 8 pole
Additional parts equipped
Connection spring balancer connection
Connection plating tin-plated
Rated voltage 160 V
Contact type socket
Rated current 10 A
contact surface tin-plated
Orientation angled
Grid 3.81 mm
Number of rows 1
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
