2734-206 | WAGO

Socket header, 6 pole, pitch 3.81 mm, angled, orange, 2734-206

Order No.: 44P0325
EAN: 4055143285360
MPN:
2734-206
Series: MCS MINI

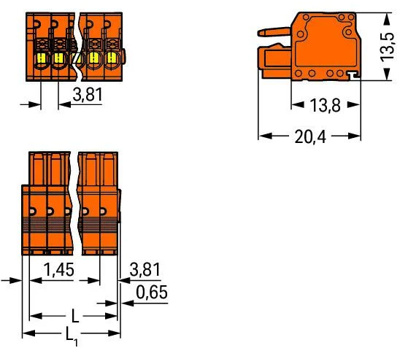

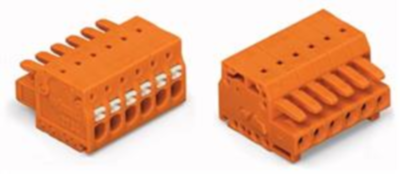

2734-206 WAGO PCB Connection Systems Image 1
2734-206 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.3078 €

Female header, 2734-206, Wago

Female connector with actuating pushers 6-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected codable orange

Technical specifications
Colour orange
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.81 mm
Connection plating tin-plated
Pin number 6 pole
Version socket header
Additional parts equipped
Orientation angled
Connection spring balancer connection
Contact type socket
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
