2734-110/027-000 | WAGO

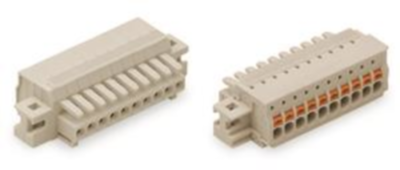

Socket header, 10 pole, pitch 3.5 mm, angled, light gray, 2734-110/027-000
Unit Price (€ / pc.)
8.0444 € *
Standard delivery time from the manufacturer is: 4 Weeks
Female header, 2734-110/027-000, Wago
Female connector with integrated push buttons 100 % mismating protected codable with mounting flanges light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Type of locking | No | |
| Pin number | 10 pole | |
| Colour | light gray | |
| contact surface | tin-plated | |
| Connection | spring balancer connection | |
| Grid | 3.5 mm | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
