2721-212/037-000 | WAGO
Female connector, 12 pole, pitch 7.5 mm, light gray, 2721-212/037-000
Unit Price (€ / pc.)
13.7207 € *
Standard delivery time from the manufacturer is: 4 Weeks
Female connector, 2721-212/037-000, WAGO

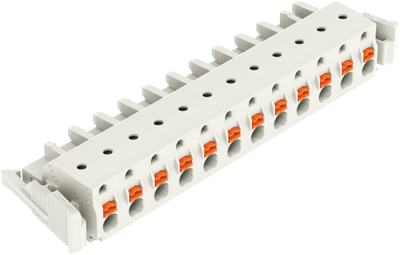

1-conductor female connector, push-button, Push-in CAGE CLAMP, 2.5 mm², Pin spacing 7.5 mm, 12-pole, 100% protected against mismating, Lateral locking levers, 2,50 mm², light gray.
Features
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Simple, push-in termination of solid and ferruled conductors
- Integrated test ports for testing parallel to the conductor entry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 16 A | |
| Grid | 7.5 mm | |
| Pin number | 12 pole | |
| Version | socket header | |
| Connection | push-in | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
