2721-207/008-000 | WAGO
Socket header, 7 pole, pitch 7.5 mm, angled, light gray, 2721-207/008-000
Unit Price (€ / pc.)
6.7592 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

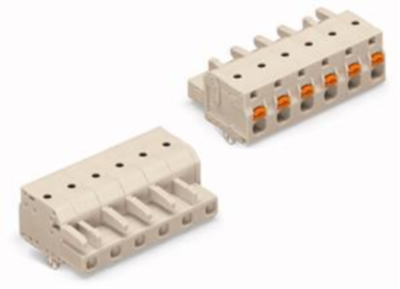

Female header, 2721-207/008-000, Wago
Female connector with actuation pushers and snap-in feet 7-pole Spacing 7.5 mm / 0.295 in 100 % mismating protected codable with 2 snap-in lugs with mounting adapter 209-137 also on TS 35 Sheet thickness 0.6x1.2 mm Mounting holes Ø 3.5 mm light gray
Technical specifications
| Colour | light gray | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 16 A | |
| Grid | 7.5 mm | |
| Connection plating | tin-plated | |
| Pin number | 7 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | spring balancer connection | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
