2721-203/026-000 | WAGO

Female connector, 3 pole, pitch 7.5 mm, light gray, 2721-203/026-000

Order No.: 44P7902
EAN: 4045454745202
MPN:
2721-203/026-000
Series: MCS MIDI

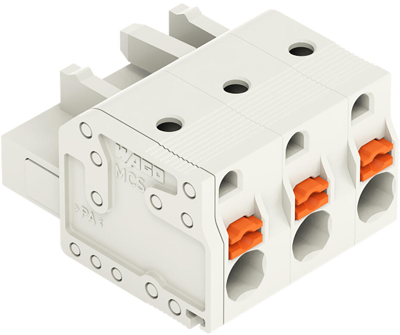

2721-203/026-000 WAGO PCB Connection Systems Image 1
2721-203/026-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.2963 € *
Available: 40 pcs.
Total Price:
3.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.2963 €

Female connector, 2721-203/026-000, WAGO

1-conductor female connector, push-button, Push-in CAGE CLAMP, 2.5 mm², Pin spacing 7.5 mm, 3-pole, 100% protected against mismating, 2,50 mm², light gray.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Simple, push-in termination of solid and ferruled conductors
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 16 A
Grid 7.5 mm
Pin number 3 pole
Version socket header
Connection push-in
Contact type socket
Rated voltage 630 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
