252-308 | WAGO
Female connector, 8 pole, pitch 3.5 mm, gray, 252-308
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.1301 €
*incl. VAT plus shipping costs
Subject to prior sale

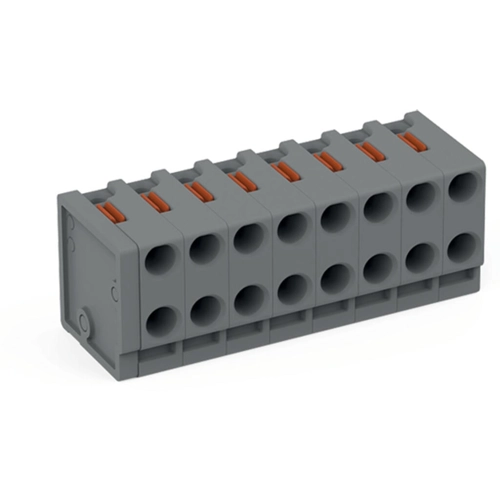

2-conductor female connector, 252-308, WAGO
2-conductor female connector, push-button, Push wire, 0.8 mm Ø, Pin spacing 3.5 mm, 8-pole, for individual solder pins, for KNX, 0.50 mm², gray.
Features
- Double entries for power supply and distribution
- Quick and easy PCB replacement
- Loop connection is retained, even when unmated
- Group arrangement is possible without losing any poles
Technical specifications
| Colour | gray | |
| Pin number | 8 pole | |
| Contact type | socket | |
| Version | socket header | |
| Number of rows | 1 | |
| Connection | push-wire connection | |
| Rated voltage | 160 V | |
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Rated current | 2 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
