232-872/039-000 | WAGO

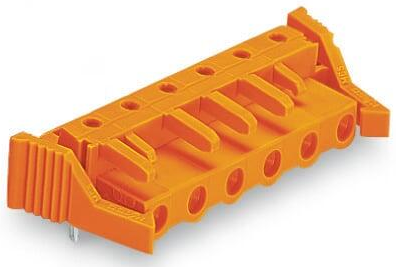

Socket header, 12 pole, pitch 7.62 mm, angled, orange, 232-872/039-000
Unit Price (€ / pc.)
9.1154 € *
Standard delivery time from the manufacturer is: 3 Weeks
Female header, 232-872/039-000, Wago
Female connector with angled solder pins and locking pawls 12-pole Spacing 7.62 mm / 0.3 in Solder pin 0.6x1 mm codable Plug-in direction parallel to PCB with 2 locking pawls orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | tin-plated | |
| Colour | orange | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 7.62 mm | |
| Orientation | angled | |
| Rated voltage | 630 V | |
| Connection | solder pin | |
| Pin number | 12 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
