232-769/047-000 | WAGO

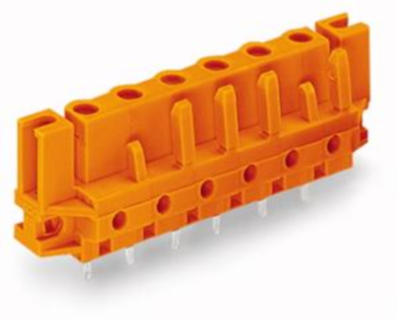

Socket header, 9 pole, pitch 7.62 mm, straight, orange, 232-769/047-000
Unit Price (€ / pc.)
6.9496 € *
Standard delivery time from the manufacturer is: On Request
Female header, 232-769/047-000, Wago

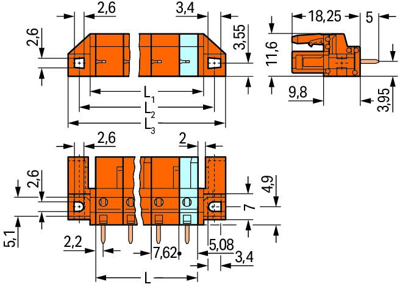

Female connector with straight solder pins and spacer flanges 9-pin Spacing 7.62 mm / 0.3 in Solder pin 0.6x1 mm can be coded Mating direction perpendicular to PCB with 2 latches for flush housing mounting orange
Technical specifications
| Contact type | socket | |
| Orientation | straight | |
| Grid | 7.62 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 12 A | |
| Number of rows | 1 | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 9 pole | |
| Rated voltage | 630 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
