232-541/007-000 | WAGO

Connecting pin header, 11 pole, pitch 5.08 mm, straight, orange, 232-541/007-000

Order No.: 43P7121
EAN: 4045454339975
MPN:
232-541/007-000

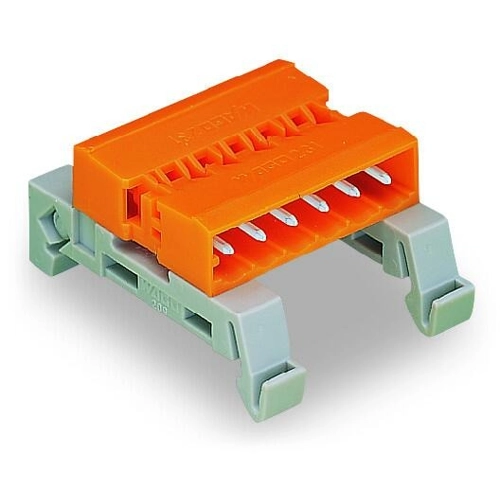

232-541/007-000 WAGO PCB Connection Systems Image 1
232-541/007-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.9254 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.9254 €

Double pin header, 232-541/007-000, WAGO

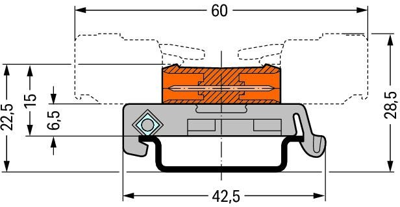

Double pin header, DIN-35 rail mounting, 11-pole, pin spacing 5.08 mm, orange.

Features

  • Allow MCS female connector to be fitted with wire harness or cable assembly to be plugged together
  • Coding via coding keys on both sides
Technical specifications
Filter Property Value
Breakable No
Grid 5.08 mm
Orientation straight
Contact type pin
Rated current 12 A
Additional parts equipped
Version pin header
Pin number 11 pole
Number of rows 1
Colour orange
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
