232-334 | WAGO

Pin header, 4 pole, pitch 5 mm, angled, gray, 232-334

Order No.: 43P7056
EAN: 4044918685450
MPN:
232-334

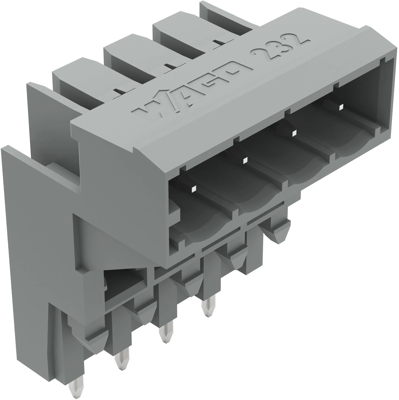

232-334 WAGO PCB Connection Systems Image 1

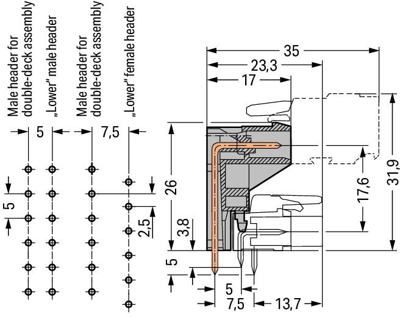

232-334 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0944 €

Male header, 232-334, Wago

Stackable pinheader with angled solder pins 4-pin Spacing 5 mm / 0.197 in with side panels mating direction parallel to PCB grey

Technical specifications
Filter Property Value
Grid 5 mm
Connection solder pin
Version pin header
Orientation angled
Pin number 4 pole
Additional parts equipped
Connection plating tin-plated
Contact type pin
contact surface tin-plated
Type of locking No
Number of rows 1
Colour gray
Rated current 12 A
Rated voltage 320 V
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
