232-242/031-000 | WAGO

Socket header, 12 pole, pitch 5 mm, angled, gray, 232-242/031-000

Order No.: 43P6870
EAN: 4044918624985
MPN:
232-242/031-000

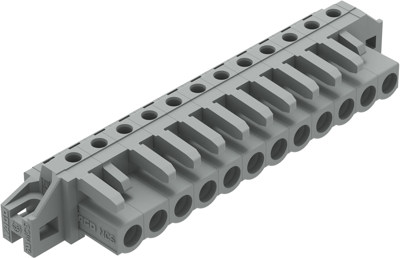

232-242/031-000 WAGO PCB Connection Systems Image 1

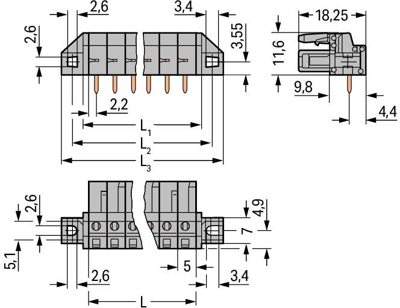

232-242/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.8425 €

Female header, 232-242/031-000, Wago

Female connector with angled solder pins and feed-through flanges 12-pole Grid spacing 5 mm / 0.197 in solder pin 0.6x1 mm codable Mating direction parallel to PCB with 2 latches for completed assembly gray

Technical specifications
Colour gray
Type of locking No
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Connection plating tin-plated
Pin number 12 pole
Version socket header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
