232-240/031-000 | WAGO

Socket header, 10 pole, pitch 5 mm, angled, gray, 232-240/031-000

Order No.: 43P6859
EAN: 4044918624961
MPN:
232-240/031-000

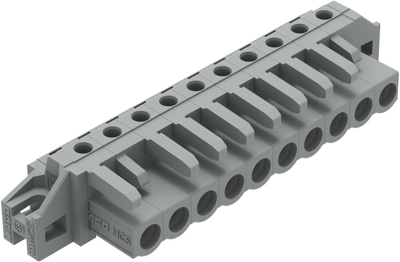

232-240/031-000 WAGO PCB Connection Systems Image 1
232-240/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.2114 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.2114 €

Female header, 232-240/031-000, Wago

Female multipoint connector with angled solder pins and feed-through flanges 10-pin Spacing 5 mm / 0.197 in Solder pin 0.6x1 mm codable Mating direction parallel to PCB with 2 latches for feed-through assembly gray

Technical specifications
Colour gray
Type of locking No
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Connection plating tin-plated
Pin number 10 pole
Version socket header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
