232-224/026-000 | WAGO

Socket header, 24 pole, pitch 5 mm, angled, gray, 232-224/026-000

Order No.: 43P6808
EAN: 4044918393416
MPN:
232-224/026-000

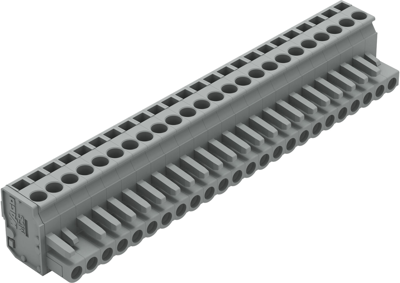

232-224/026-000 WAGO PCB Connection Systems Image 1

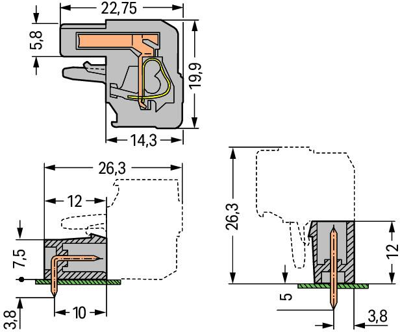

232-224/026-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
17.9214 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
17.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.9214 €

1-Conductor female plug, 232-224/026-000, Wago

1-conductor female connector; angled; 2.5 mm²; grid spacing 5 mm; 24-pole; 2.50 mm²; gray

Technical specifications
Filter Property Value
Rated current 14 A
contact surface tin-plated
Colour gray
Additional parts equipped
Contact type socket
Connection plating tin-plated
Grid 5 mm
Orientation angled
Rated voltage 320 V
Connection spring balancer connection
Pin number 24 pole
Version socket header
Type of locking No
Number of rows 1
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
