232-123/026-000 | WAGO

Socket header, 23 pole, pitch 5 mm, angled, gray, 232-123/026-000

Order No.: 43P6570
EAN: 4044918384322
MPN:
232-123/026-000

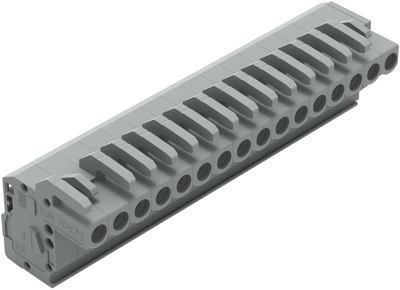

232-123/026-000 WAGO PCB Connection Systems Image 1
232-123/026-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
17.1717 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
17.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.1717 €

Female header, 232-123/026-000, Wago

Angled female connector 23-pole Spacing 5 mm / 0.197 in codable with 2 detents Conductor exit to the wavy side of the male connector gray

Technical specifications
Filter Property Value
Additional parts equipped
Connection plating tin-plated
Connection spring balancer connection
Type of locking No
Version socket header
contact surface tin-plated
Contact type socket
Grid 5 mm
Pin number 23 pole
Orientation angled
Number of rows 1
Rated voltage 320 V
Rated current 14 A
Colour gray
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
