231-940/001-000 | WAGO
Pin header, 10 pole, pitch 7.62 mm, orange, 231-940/001-000
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: On Request

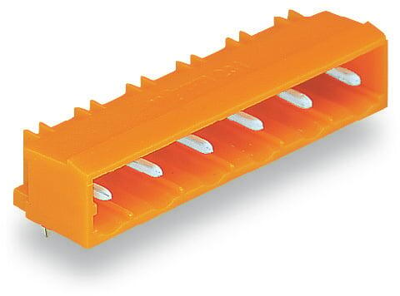

THT male header, 231-940/001-000, WAGO

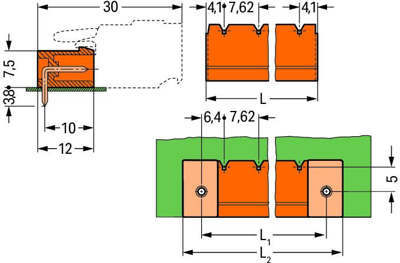

THT male header, 1.0 x 1.0 mm solder pin, angled, Pin spacing 7.62 mm, 10-pole, Orange.
Features
- THR male headers for reflow soldering in SMT applications
- Male headers may be mounted horizontally or vertically
- With coding fingers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | tin-plated | |
| Colour | orange | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Rated voltage | 630 V | |
| Connection | solder pin | |
| Pin number | 10 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
