231-833/001-000/105-604 | WAGO
Pin header, 3 pole, pitch 7.5 mm, angled, black, 231-833/001-000/105-604
Unit Price (€ / pc.)
0.9758 € *
Standard delivery time from the manufacturer is: 4 Weeks

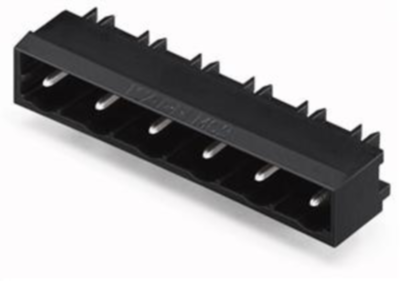

Male header, 231-833/001-000/105-604, Wago
Male connector with angled solder pins 1 x 1 mm 3 poles spacing 7,5 mm / 0.295 in solder pin length 2,4 mm with side walls reflow technology mating direction perpendicular to PCB black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | solder pin | |
| Rated voltage | 630 V | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 3 pole | |
| Contact type | pin | |
| Grid | 7.5 mm | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
