231-770/001-000 | WAGO

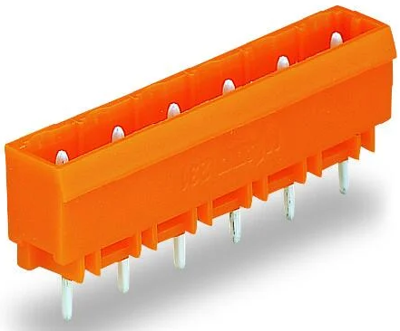

Pin header, 10 pole, pitch 7.62 mm, straight, orange, 231-770/001-000
Unit Price (€ / pc.)
3.4867 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.49 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4867 €
10 pcs.
3.2011 €
50 pcs.
2.9155 €
100 pcs.
2.6299 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 231-770/001-000, Wago

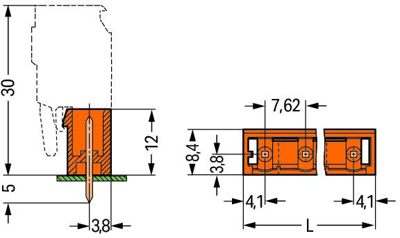

Male header with straight solder pins 1.2 x 1.2 mm 10 poles grid spacing 7.62 mm / 0.3 in with side panels mating direction perpendicular to PCB orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Type of locking | No | |
| Version | pin header | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Pin number | 10 pole | |
| Orientation | straight | |
| Number of rows | 1 | |
| Rated voltage | 630 V | |
| Rated current | 16 A | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
