231-707/031-000 | WAGO
Socket header, 7 pole, pitch 7.62 mm, angled, orange, 231-707/031-000
Unit Price (€ / pc.)
6.3427 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
10 pcs.
5.8310 €
50 pcs.
5.3074 €
100 pcs.
4.7838 €
*incl. VAT plus shipping costs
Subject to prior sale

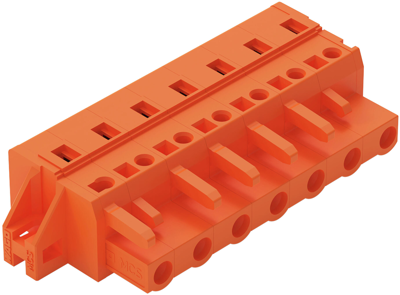

Female header, 231-707/031-000, Wago
Female connector with mounting flanges 7-pole Spacing 7.62 mm / 0.3 in codable with 2 pawls for surface mounting for screw- or similar types of mounting Mounting types with coding lug with latching lug orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Version | socket header | |
| contact surface | tin-plated | |
| Colour | orange | |
| Number of rows | 1 | |
| Pin number | 7 pole | |
| Connection plating | tin-plated | |
| Rated voltage | 630 V | |
| Type of locking | No | |
| Orientation | angled | |
| Contact type | socket | |
| Connection | spring balancer connection | |
| Rated current | 16 A | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
