231-706/027-000 | WAGO

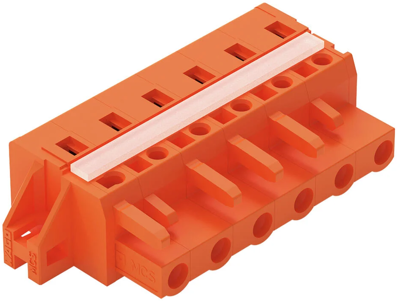

Socket header, 6 pole, pitch 7.62 mm, angled, orange, 231-706/027-000
Unit Price (€ / pc.)
7.0448 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.04 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0448 €
10 pcs.
6.4855 €
50 pcs.
5.9024 €
100 pcs.
5.3074 €
*incl. VAT plus shipping costs
Subject to prior sale
Female header, 231-706/027-000, Wago
Female connector with mounting flanges 6-pole Spacing 7.62 mm / 0.3 in codable with 2 detents with stiffening strips for plug-in units and feed-throughs for screw terminals or similar Mounting types orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Grid | 7.62 mm | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Type of locking | No | |
| Additional parts | equipped | |
| Orientation | angled | |
| Colour | orange | |
| Rated current | 16 A | |
| Connection | spring balancer connection | |
| Pin number | 6 pole | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
