231-654/018-000/035-000 | WAGO

Pin header, 24 pole, pitch 5.08 mm, angled, orange, 231-654/018-000/035-000

Order No.: 43P6390
EAN: 4044918284578
MPN:
231-654/018-000/035-000

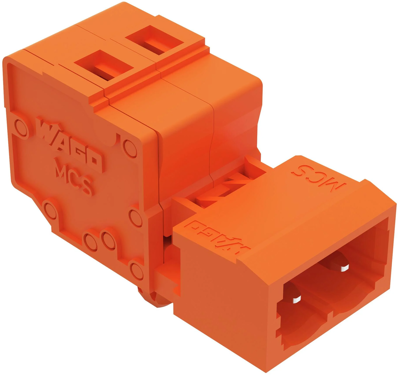

231-654/018-000/035-000 WAGO PCB Connection Systems Image 1

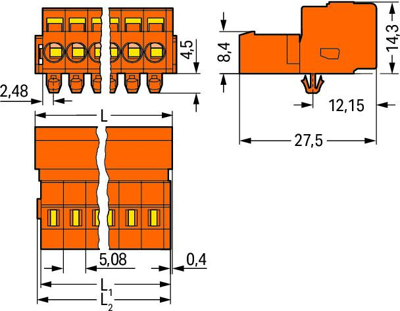

231-654/018-000/035-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
18.7187 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
18.72 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7187 €
10 pcs.
17.2193 €
50 pcs.
15.6723 €
100 pcs.
14.1015 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 231-654/018-000/035-000, Wago

Male header with snap-in feet and strain relief plate 24-pole grid dimension 5.08 mm / 0.2 in with mounting adapter 209-137 also on TS 35 sheet thickness 0.6x1.2 mm fixing holes Ø 3.5 mm orange

Technical specifications
Filter Property Value
Contact type pin
Orientation angled
Grid 5.08 mm
Additional parts equipped
Type of locking No
Rated current 12 A
Number of rows 1
Colour orange
contact surface tin-plated
Version pin header
Connection plating tin-plated
Connection spring balancer connection
Pin number 24 pole
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
