231-571/001-000 | WAGO

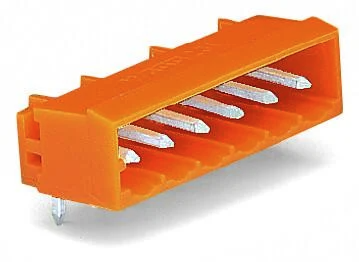

Pin header, 11 pole, pitch 5.08 mm, angled, orange, 231-571/001-000

Order No.: 43P6112
EAN: 4044918931304
MPN:
231-571/001-000
231-571/001-000 WAGO PCB Connection Systems Image 1
231-571/001-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.5942 €

Male header, 231-571/001-000, Wago

Male header with angled solder pins 1.2 x 1.2 mm 11-pin Spacing 5.08 mm / 0.2 in mating direction parallel to printed circuit board with side panels orange

Technical specifications
Additional parts equipped
Connection plating tin-plated
Connection solder pin
Type of locking No
Version pin header
contact surface tin-plated
Contact type pin
Grid 5.08 mm
Pin number 11 pole
Orientation angled
Number of rows 1
Rated voltage 320 V
Rated current 12 A
Colour orange
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
