231-533/108-000 | WAGO
Pin header, 3 pole, pitch 5.08 mm, angled, orange, 231-533/108-000
Unit Price (€ / pc.)
1.7969 € *
Standard delivery time from the manufacturer is: 4 Weeks

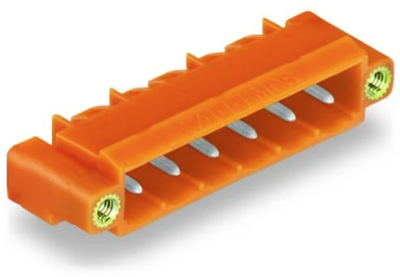

Male header, 231-533/108-000, Wago
Male header with angled solder pins 1 x 1 mm and threaded flanges 3-pole Spacing 5.08 mm / 0.2 in mating direction perpendicular to PCB orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Colour | orange | |
| Additional parts | equipped | |
| Pin number | 3 pole | |
| Contact type | pin | |
| Orientation | angled | |
| Type of locking | Yes | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 12 A | |
| Number of rows | 1 | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
