231-462/001-000/105-604/997-405 | WAGO
Pin header, 2 pole, pitch 5 mm, black, 231-462/001-000/105-604/997-405
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 3 Weeks
THT male header, 231-462/001-000/105-604/997-405, WAGO

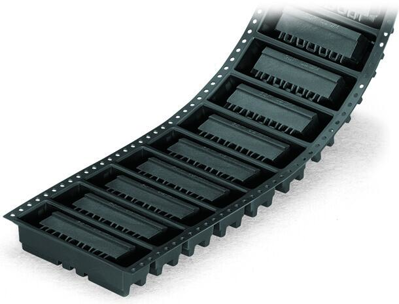

THR male header, 1.2 x 1.2 mm solder pin, angled, in tape-and-reel packaging, Pin spacing 5 mm, 2-pole, Black.
Features
- THR male headers for reflow soldering in SMT applications
- Male headers may be mounted horizontally or vertically
- With coding fingers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder pin | |
| Colour | black | |
| Pin number | 2 pole | |
| Contact type | pin | |
| Type of locking | Yes | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
