231-432/001-000/105-604 | WAGO
Pin header, 2 pole, pitch 5 mm, angled, black, 231-432/001-000/105-604
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4879 €
100 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

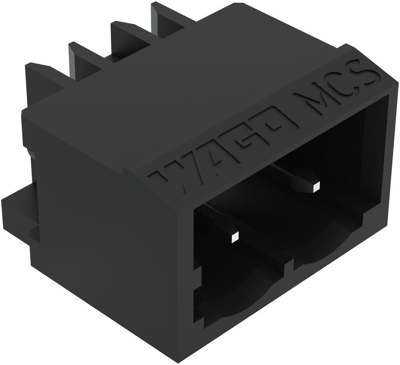

Male header, 231-432/001-000/105-604, Wago
Male header with angled solder pins 1 x 1 mm 2 poles Spacing 5 mm / 0.197 in Solder pin length 2.4 mm with side panels Reflow technology Mating direction parallel to PCB black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | solder pin | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 2 pole | |
| Contact type | pin | |
| Grid | 5 mm | |

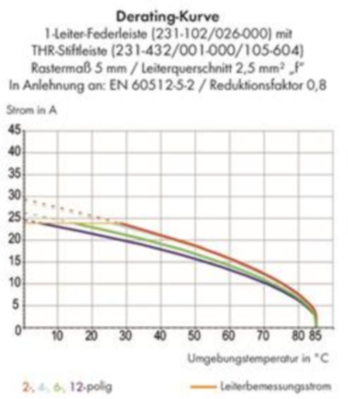

| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
