231-317/026-000 | WAGO

Socket header, 17 pole, pitch 5.08 mm, angled, orange, 231-317/026-000

Order No.: 43P5907
EAN: 4044918349611
MPN:
231-317/026-000

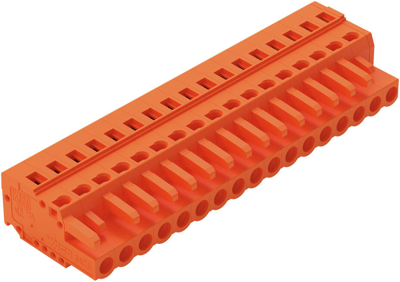

231-317/026-000 WAGO PCB Connection Systems Image 1
231-317/026-000 WAGO PCB Connection Systems Image 2
231-317/026-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.6509 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.6509 €

Female header, 231-317/026-000, Wago

Female connector 17-pin Spacing 5.08 mm / 0.2 in with coding nose with latching nose orange

Technical specifications
Filter Property Value
Connection plating tin-plated
Grid 5.08 mm
Orientation angled
Connection spring balancer connection
Contact type socket
Rated current 16 A
Additional parts equipped
Version socket header
Pin number 17 pole
Type of locking No
contact surface tin-plated
Number of rows 1
Colour orange
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
