231-165/001-000/105-604 | WAGO
Pin header, 5 pole, pitch 5 mm, straight, black, 231-165/001-000/105-604
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 4 Weeks

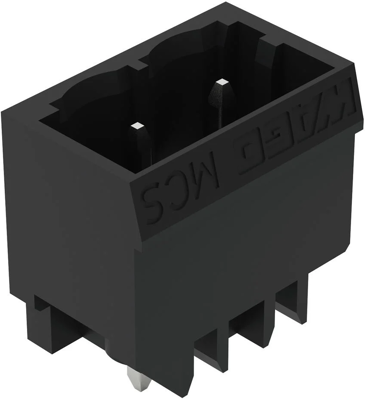

Male header, 231-165/001-000/105-604, Wago

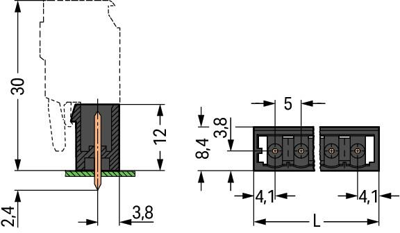

Male connector with straight solder pins 1,2 x 1,2 mm 5 poles Spacing 5 mm / 0.197 in Solder pin length 2,4 mm with side panels Reflow technology Mating direction perpendicular to PCB black
Technical specifications
| Contact type | pin | |
| Orientation | straight | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | black | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 5 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
