231-148/001-000 | WAGO

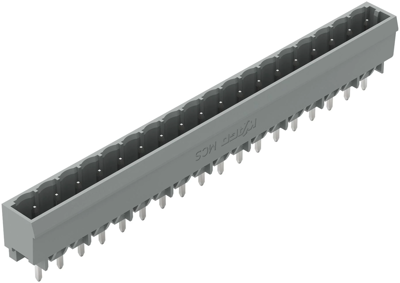

Pin header, 18 pole, pitch 5 mm, straight, gray, 231-148/001-000
Unit Price (€ / pc.)
3.7842 € *
Standard delivery time from the manufacturer is: 4 Weeks
Male header, 231-148/001-000, Wago
Male connector with straight solder pins 1 x 1 mm 18-pole Spacing 5 mm / 0.197 in mating direction perpendicular to PCB with side panels gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 18 pole | |
| Additional parts | equipped | |
| Colour | gray | |
| Version | pin header | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
