231-133/001-000/105-604 | WAGO
Pin header, 3 pole, pitch 5 mm, straight, black, 231-133/001-000/105-604
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7735 €
100 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

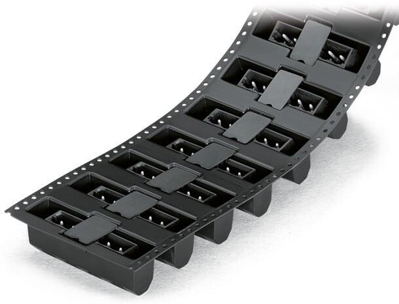

Male header, 231-133/001-000/105-604, Wago

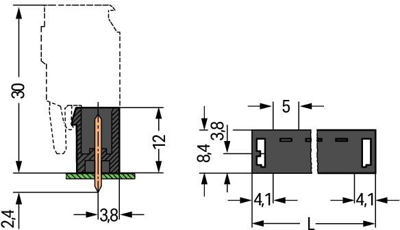

Male connector with straight solder pins 1 x 1 mm 3 poles grid spacing 5 mm / 0.197 in solder pin length 2.4 mm with side walls reflow technology mating direction perpendicular to PCB black
Technical specifications
| Contact type | pin | |
| Orientation | straight | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 12 A | |
| Number of rows | 1 | |
| Colour | black | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 3 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
