231-122/026-000/035-000 | WAGO
Socket header, 22 pole, pitch 5 mm, angled, gray, 231-122/026-000/035-000
Unit Price (€ / pc.)
18.3260 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
18.33 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3260 €
10 pcs.
16.8623 €
50 pcs.
15.5176 €
100 pcs.
14.1134 €
*incl. VAT plus shipping costs
Subject to prior sale
Female header, 231-122/026-000/035-000, Wago

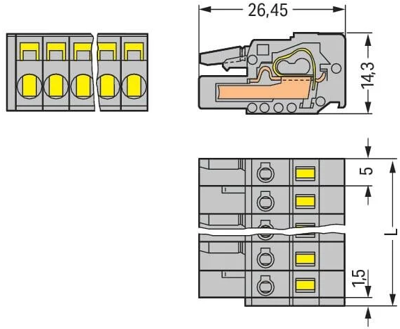

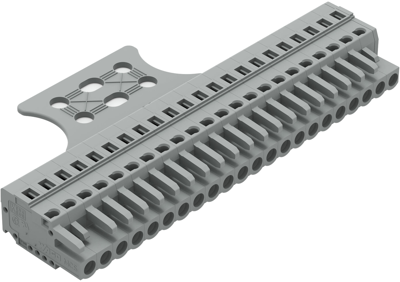

Female connector with strain relief plate 22-pole grid dimension 5 mm / 0.197 in codable with 2 latches with coding lug with latching lug grey
Technical specifications
| Contact type | socket | |
| Orientation | angled | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | gray | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | spring balancer connection | |
| Pin number | 22 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
