231-117/026-000 | WAGO

Socket header, 17 pole, pitch 5 mm, angled, gray, 231-117/026-000

Order No.: 43P5452
EAN: 4044918342384
MPN:
231-117/026-000

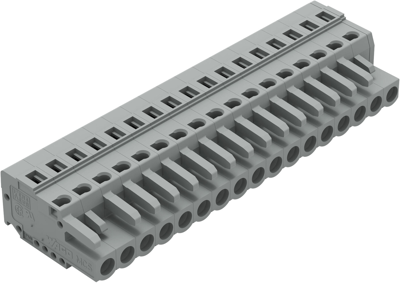

231-117/026-000 WAGO PCB Connection Systems Image 1

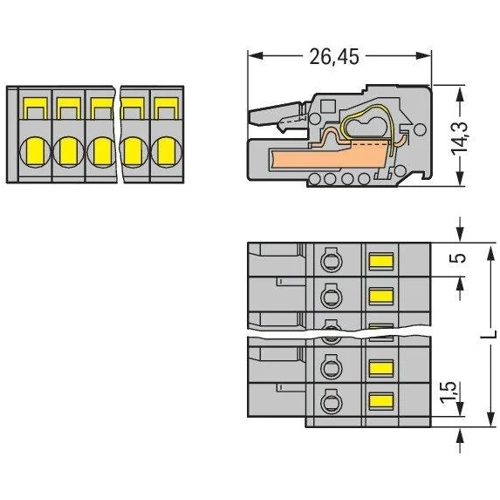

231-117/026-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
9.6509 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.6509 €

Female header, 231-117/026-000, Wago

Female multipoint connector 17-pole Spacing 5 mm / 0.197 in codable with 2 detents with coding lug with detent gray

Technical specifications
Filter Property Value
Grid 5 mm
Connection spring balancer connection
Version socket header
Orientation angled
Pin number 17 pole
Additional parts equipped
Connection plating tin-plated
Contact type socket
contact surface tin-plated
Type of locking No
Number of rows 1
Colour gray
Rated current 16 A
Rated voltage 320 V
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
