2231-207/008-000 | WAGO

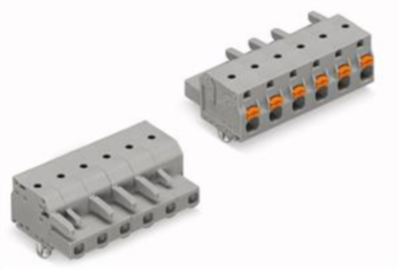

Socket header, 7 pole, pitch 7.5 mm, angled, gray, 2231-207/008-000
Unit Price (€ / pc.)
4.9742 € *
Standard delivery time from the manufacturer is: 4 Weeks
Female header, 2231-207/008-000, Wago
Female connector with actuating pushers and latching feet 7-pole Grid spacing 7.5 mm / 0.295 in codable with 2 latching lugs Sheet thickness 0.6x1.2 mm Mounting holes Ø 3.5 mm with mounting adapter 209-137 also on TS 35 gray
Technical specifications
| Colour | gray | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 16 A | |
| Grid | 7.5 mm | |
| Connection plating | tin-plated | |
| Pin number | 7 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | spring balancer connection | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
