2231-204/008-000 | WAGO
Socket header, 4 pole, pitch 7.5 mm, angled, gray, 2231-204/008-000
Unit Price (€ / pc.)
4.1174 € *
Available: 48 pcs.
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.7842 €
50 pcs.
3.4510 €
100 pcs.
3.1059 €
*incl. VAT plus shipping costs
Subject to prior sale

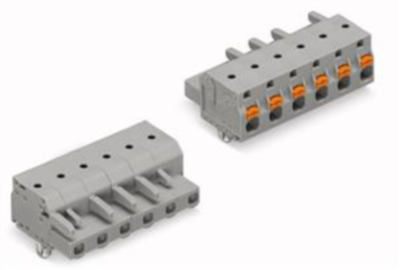

Female header, 2231-204/008-000, Wago

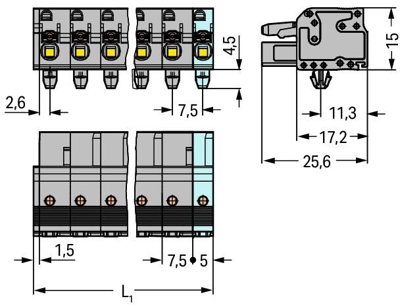

Female connector with actuating pushers and latching feet 4-pole Grid spacing 7.5 mm / 0.295 in codable with 2 latching lugs Sheet thickness 0.6x1.2 mm Mounting holes Ø 3.5 mm with mounting adapter 209-137 also on TS 35 gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 7.5 mm | |
| Orientation | angled | |
| Connection | spring balancer connection | |
| Contact type | socket | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 4 pole | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | gray | |
| Rated voltage | 630 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
