2231-124/008-000 | WAGO

Socket header, 24 pole, pitch 5 mm, angled, gray, 2231-124/008-000

Order No.: 43P5331
EAN: 4045454722319
MPN:
2231-124/008-000

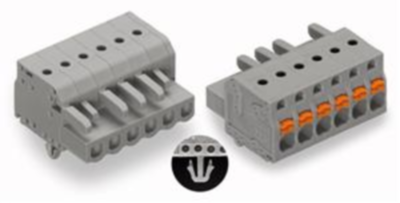

2231-124/008-000 WAGO PCB Connection Systems Image 1

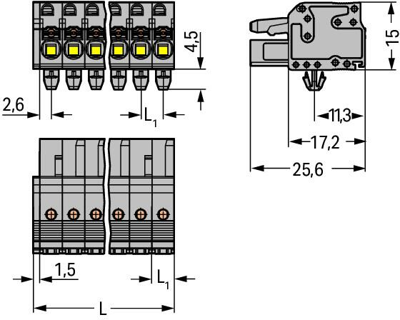

2231-124/008-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
21.8722 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.87 € *
Price list
Quantity
Price per unit*
1 pcs.
21.8722 €
10 pcs.
20.1229 €
50 pcs.
18.5045 €
100 pcs.
16.8385 €
*incl. VAT plus shipping costs
Subject to prior sale

Female header, 2231-124/008-000, Wago

Female connector with actuating pushers and latching feet 24-pole Spacing 5 mm / 0.197 in codable with 2 latches Sheet thickness 0.6x1.2 mm Mounting holes Ø 3.5 mm with mounting adapter 209-137 also on TS 35 gray

Technical specifications
Colour gray
Type of locking No
contact surface tin-plated
Rated current 16 A
Grid 5 mm
Connection plating tin-plated
Pin number 24 pole
Version socket header
Additional parts equipped
Orientation angled
Connection spring balancer connection
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
