2231-106/031-000 | WAGO

1-wire female connector, 6 pole, pitch 5 mm, gray, 2231-106/031-000

Order No.: 44P7470
EAN: 4045454875459
MPN:
2231-106/031-000

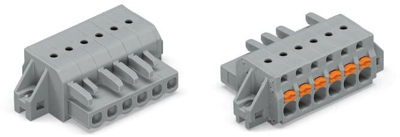

2231-106/031-000 WAGO PCB Connection Systems Image 1
2231-106/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.1646 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.1646 €

1-conductor female connector, 2231-106/031-000, WAGO

1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 5 mm, 6-pole, clamping collar, 2.50 mm², gray.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Rated voltage 320 V
Type of locking No
Number of rows 1
Rated current 16 A
Colour gray
Pin number 6 pole
Contact type socket
Version socket header
Grid 5 mm
Connection push-in
contact surface tin-plated
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
