2231-104/037-000 | WAGO

1-wire female connector, 4 pole, pitch 5 mm, gray, 2231-104/037-000

Order No.: 44P7464
EAN: 4045454877323
MPN:
2231-104/037-000

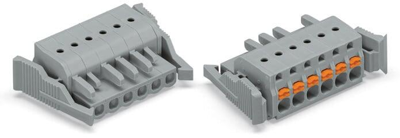

2231-104/037-000 WAGO PCB Connection Systems Image 1
2231-104/037-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.6414 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6414 €

1-conductor female connector, 2231-104/037-000, WAGO

1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 5 mm, 4-pole, Lateral locking levers, 2.50 mm², gray.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Colour gray
Type of locking Yes
contact surface tin-plated
Rated current 16 A
Grid 5 mm
Pin number 4 pole
Version socket header
Connection push-in
Contact type socket
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
