2092-3175 | WAGO

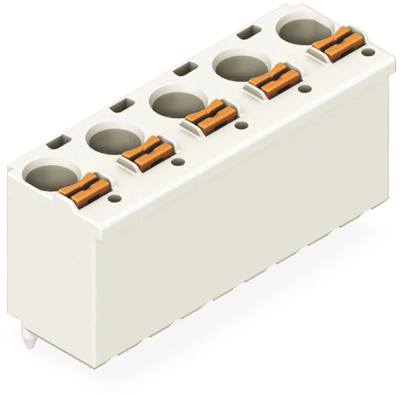

Socket header, 5 pole, pitch 7.5 mm, straight, light gray, 2092-3175
Unit Price (€ / pc.)
3.2725 € *
Available in 5 Days: 1,285 pcs. - if ordered today
Female header, 2092-3175, Wago
female multipoint connector picoMAX® eCOM with straight solder pins without grip plate 5 poles grid spacing 7,5 mm / 0.295 in light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Colour | light gray | |
| Additional parts | equipped | |
| Pin number | 5 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | No | |
| Rated voltage | 630 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
