2092-1722/200-000 | WAGO

Pin header, 2 pole, pitch 5 mm, angled, black, 2092-1722/200-000

Order No.: 44P8021
EAN: 4055143935708
MPN:
2092-1722/200-000
Series: 2092

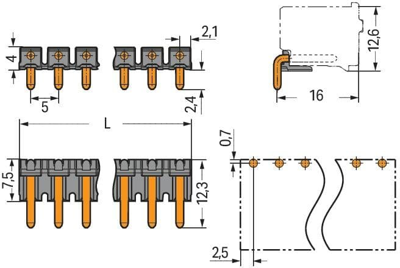

2092-1722/200-000 WAGO PCB Connection Systems Image 1

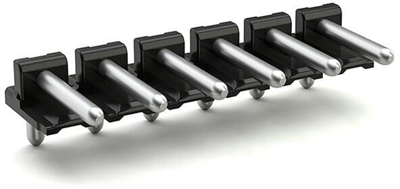

2092-1722/200-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.4998 €

THR male header, 2092-1722/200-000, WAGO

THR male header, 1.4 mm Ø solder pin, angled, Pin spacing 5 mm, 2-pole, black.

Features

  • Solder pin strips may be mounted horizontally or vertically via straight or angled solder pins
  • Assembly of female connectors without loss of poles, allowing different functions to be divided within one solder pin strip
Technical specifications
Filter Property Value
Colour black
Type of locking No
contact surface tin-plated
Rated current 16 A
Grid 5 mm
Connection plating tin-plated
Pin number 2 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
