Pin header, 9 pole, pitch 5 mm, straight, black, 2092-1709
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: On Request

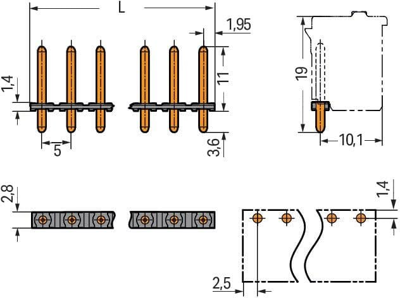

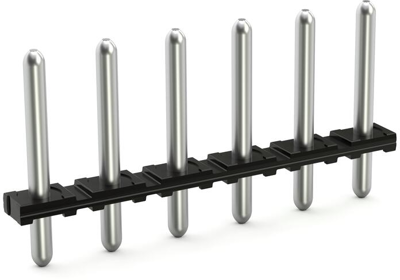

THT male header, 2092-1709, WAGO
THT male header, 1.4 mm Ø solder pin, straight, Pin spacing 5 mm, 9-pole, black.
Features
- Solder pin strips may be mounted horizontally or vertically via straight or angled solder pins
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one solder pin strip
Technical specifications
| Colour | black | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 16 A | |
| Grid | 5 mm | |
| Connection plating | tin-plated | |
| Pin number | 9 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
