2092-1524/002-000 | WAGO

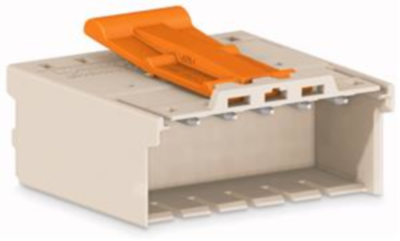

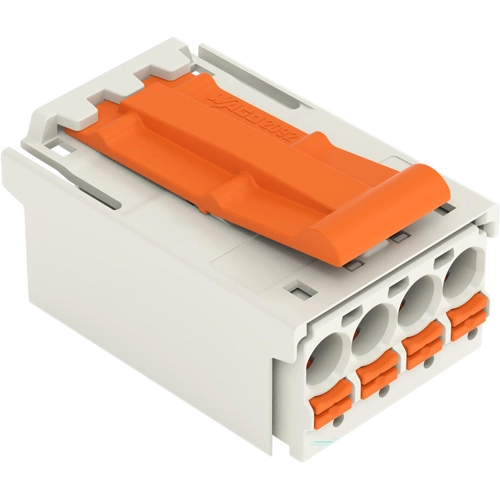

Pin header, 4 pole, pitch 5 mm, straight, light gray, 2092-1524/002-000
Unit Price (€ / pc.)
3.1892 € *
Standard delivery time from the manufacturer is: 4 Weeks
Female connector, 2092-1524/002-000, WAGO
1-conductor male connector, Push-in CAGE CLAMP, 2.5 mm², pin spacing 5 mm, 4-pole, DIN-35 rail/panel mounting, snap-in mounting feet, integrated release lever, 2,50 mm², light gray.
Features
- Universal connection for all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Testing parallel to conductor entry - tip contact
- Integrated release lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Breakable | No | |
| Contact type | pin | |
| Connection | push-in | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 4 pole | |
| Additional parts | equipped | |
| Colour | light gray | |
| Version | pin header | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
