2092-1425/200-000/997-406 | WAGO

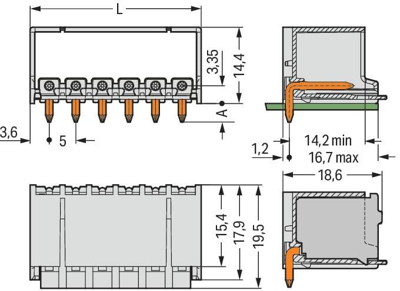

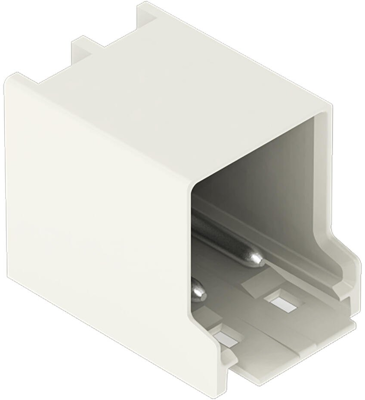

Pin header, 5 pole, pitch 5 mm, angled, light gray, 2092-1425/200-000/997-406
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: 3 Weeks
THT male header, 2092-1425/200-000/997-406, WAGO
THR male header, 1.4 mm Ø solder pin, angled, in tape-and-reel packaging, Pin spacing 5 mm, 5-pole, light gray.
Features
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one male header
- Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
- The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 5 pole | |
| Colour | light gray | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 16 A | |
| Version | pin header | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
