2092-1404/005-000 | WAGO
Pin header, 4 pole, pitch 5 mm, straight, light gray, 2092-1404/005-000
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 4 Weeks

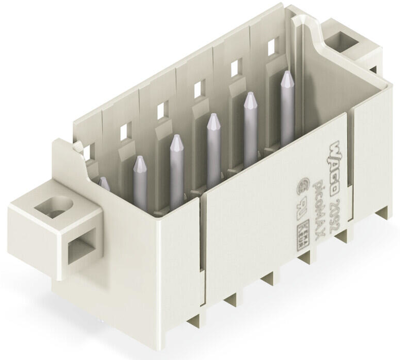

Male header, 2092-1404/005-000, Wago
Male header with straight solder pins 4 poles Spacing 5 mm / 0.197 in with mounting flange light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 5 mm | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | pin | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 4 pole | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | light gray | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
