2092-1306 | WAGO
Female connector, 6 pole, pitch 5 mm, straight, light gray, 2092-1306
Unit Price (€ / pc.)
5.0575 € *
Available in 5 Days: 186 pcs. - if ordered today

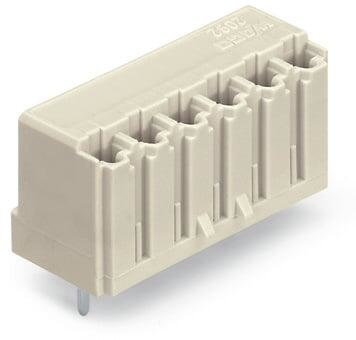

THT female header, 2092-1306, WAGO
THT female header, straight, Pin spacing 5 mm, 6-pole, 0.4 x 1.3 mm solder pin, light gray.
Features
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Grid | 5 mm | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Connection | solder pin | |
| Type of locking | No | |
| Colour | light gray | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Contact type | socket | |
| Version | socket header | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
