2091-1525/020-3000 | WAGO

1-wire pin header, 5 pole, pitch 3.5 mm, straight, light gray, 2091-1525/020-3000

Order No.: 44P7343
EAN: 4055143623063
MPN:
2091-1525/020-3000
Series: 2091

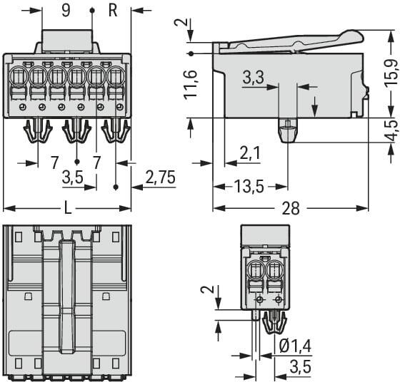

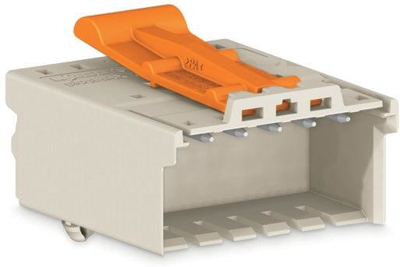

2091-1525/020-3000 WAGO PCB Connection Systems Image 1
2091-1525/020-3000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.2479 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.2479 €

Male connector, 2091-1525/020-3000, WAGO

1-conductor male connector, Push-in cage clamp, 1.5 mm², Pin spacing 3.5 mm, 5-pole, DIN-35 rail/panel mounting, Snap-in mounting feet, Integrated release lever, direct marking, 1.50 mm², light gray.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require special tools
  • Testing parallel to conductor entry - tip contact
  • For “wire-to-wire” and “board-to-wire” connections
  • Integrated release lever
Technical specifications
Version pin header
Pin number 5 pole
Rated voltage 160 V
Contact type pin
Connection push-in
Number of rows 1
Orientation straight
Breakable No
Additional parts equipped
Rated current 10 A
Grid 3.5 mm
Colour light gray
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
