2091-1525/002-000 | WAGO

1-wire pin header, 5 pole, pitch 3.5 mm, straight, light gray, 2091-1525/002-000

Order No.: 43P3917
EAN: 4055143543453
MPN:
2091-1525/002-000
Series: 2091

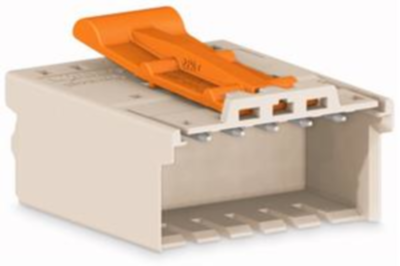

2091-1525/002-000 WAGO PCB Connection Systems Image 1
2091-1525/002-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.7485 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7485 €

1-Conductor female plug, 2091-1525/002-000, Wago

1-conductor male connector; release lever; 1.5 mm²; grid spacing 3.5 mm; 5-pin; 1.50 mm²; light gray

Technical specifications
Filter Property Value
Rated current 10 A
Contact type pin
Colour light gray
Breakable No
Number of rows 1
Additional parts equipped
Connection push-in
Orientation straight
Grid 3.5 mm
Rated voltage 160 V
Pin number 5 pole
Version pin header
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
