2091-1503/002-3000 | WAGO

1-wire pin header, 3 pole, pitch 3.5 mm, straight, light gray, 2091-1503/002-3000

Order No.: 43P3903
EAN: 4055143622981
MPN:
2091-1503/002-3000
Series: 2091

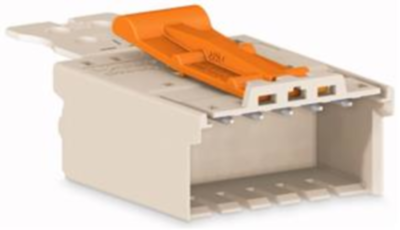

2091-1503/002-3000 WAGO PCB Connection Systems Image 1

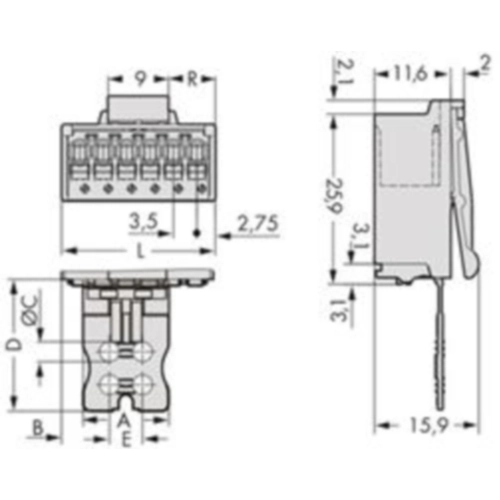

2091-1503/002-3000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.1297 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1297 €

1-Conductor female plug, 2091-1503/002-3000, Wago

Male connector with grip plate 3 poles Spacing 3,5 mm / 0.138 in light grey

Technical specifications
Filter Property Value
Rated current 10 A
Contact type pin
Colour light gray
Breakable No
Number of rows 1
Additional parts equipped
Connection push-in
Orientation straight
Grid 3.5 mm
Rated voltage 160 V
Pin number 3 pole
Version pin header
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
