2091-1426/205-000 | WAGO
Pin header, 6 pole, pitch 3.5 mm, angled, light gray, 2091-1426/205-000
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 4 Weeks

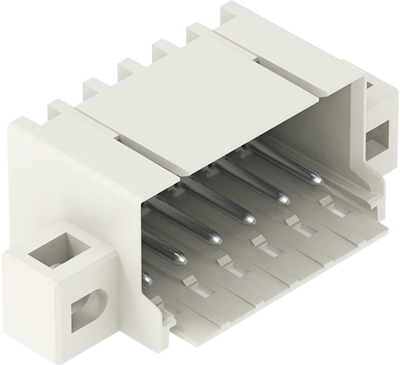

THR male header, 2091-1426/205-000, WAGO
THR male header, 1.0 mm Ø solder pin, angled, clamping collar, Pin spacing 3.5 mm, 6-pole, light gray.
Features
- Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
- The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Number of rows | 1 | |
| Connection | solder pin | |
| Rated voltage | 160 V | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 6 pole | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
