2091-1423/200-000/997-406 | WAGO

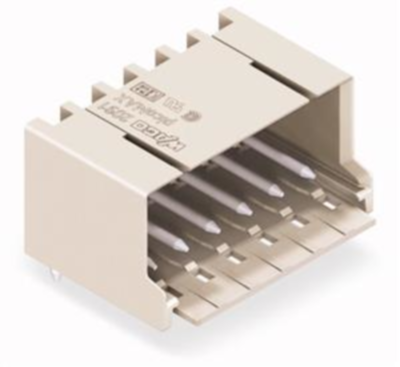

Pin header, 3 pole, pitch 3.5 mm, angled, light gray, 2091-1423/200-000/997-406
Unit Price (€ / pc.)
1.071 € *
Standard delivery time from the manufacturer is: 3 Weeks
Male header, 2091-1423/200-000/997-406, Wago

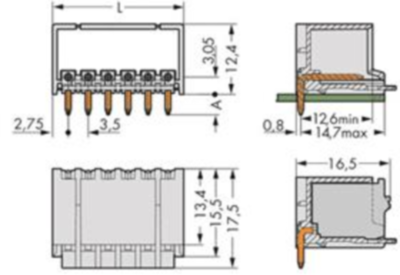

Male connector with angled solder pins 3-pole Spacing 3.5 mm / 0.138 in reflow technology light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| contact surface | tin-plated | |
| Colour | light gray | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 3.5 mm | |
| Orientation | angled | |
| Rated voltage | 160 V | |
| Connection | solder pin | |
| Pin number | 3 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
